Product Information

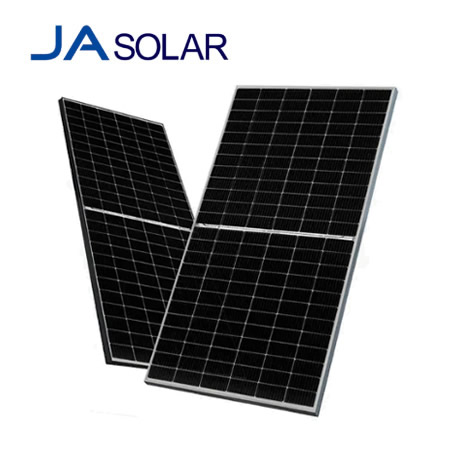

Ja Solar JAM72D30-560/LB MBB Bifacial Mono PERC 560W Double Glass Solar Module

Ja Solar JAM72D30-560/LB MBB Bifacial Mono PERC 560W Double Glass Solar Module

Type: Deep Blue 3.0
Weight: 32.5kg
Dimensions: 2333*1134*30mm
Number of Cells: 144cells
Junction Box: IP68, 3 Diodes
Certification ISO, CE, IEC 61215/61730

Documents：Ja Solar JAM72D30-560/LB MBB Bifacial Mono PERC 560W Double Glass Solar Module(PDF file download)

Electrical Parameters at STC:
(STC: Irradiance 1000W/m2, cell temperature 25ºC, AM 1.5G)

Type	JAM72D30-555/LB	JAM72D30-560/LB	JAM72D30-565/LB	JAM72D30-570/LB	JAM72D30-575/LB	JAM72D30-580/LB
Rated Max. Power(Pmax/W)	555	560	565	570	575	580
Open Circuit Voltage (Voc/V)	50.14	50.32	50.50	50.68	50.86	51.04
Max. Power Voltage (Vmp/V)	41.29	41.49	41.68	41.87	42.05	42.24
Short Circuit Current (Isc/A)	14.19	14.25	14.31	14.37	14.44	14.50
Max. Power Current (Imp/A)	13.44	13.50	13.56	13.62	13.67	13.73
Module Efficiency(%)	21.0	21.2	21.4	21.5	21.7	21.9
Power Tolerance	0~+5W
Temperature Coefficient of Isc	+0.046%/ºC
Temperature Coefficient of Voc	-0.275%/ºC
Temperature Coefficient of Pmax	-0.350%/ºC

Electrical Characteristics with 10% Solar Irradiation Ratio

Type	JAM72D30-555/LB	JAM72D30-560/LB	JAM72D30-565/LB	JAM72D30-570/LB	JAM72D30-575/LB	JAM72D30-580/LB
Rated Max. Power(Pmax/W)	594	599	605	610	615	621
Open Circuit Voltage (Voc/V)	50.14	50.32	50.50	50.68	50.86	51.04
Max. Power Voltage (Vmp/V)	41.29	41.49	41.68	41.87	42.05	42.24
Short Circuit Current (Isc/A)	15.18	15.25	15.32	15.38	15.45	15.51
Max. Power Current (Imp/A)	14.38	14.44	14.51	14.57	14.63	14.69
Irradiation Ratio (rear/front)	10%
